Standard Test Method for Drop Test of Loaded Containers by Free Fall

About ASTM-D5276

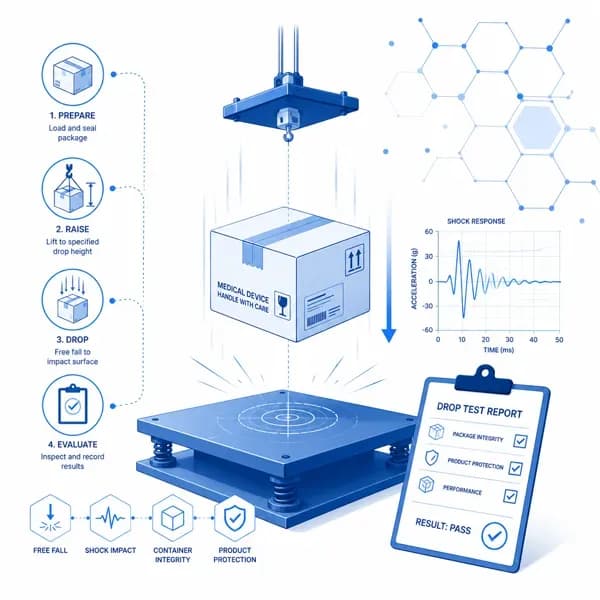

The ASTM-D5276 standard test method for drop test of loaded containers evaluates the capability of a container to withstand the sudden shock resulting from a free fall, or the capability of a container and its inner packing to protect its contents during the sudden shock resulting from a free fall. This test method may also be used to compare the performance of different package designs or permit observation of the progressive failure of a container and damage to its contents.

ASTM-D5276 is particularly suitable for containers that are normally handled manually during some part of their distribution cycle. Containers of such bulk or mass that cannot be handled manually may be tested more satisfactorily in accordance with Test Method D 880, Test Methods D 6055, Test Methods D 6179, or Test Methods D 4003. See Practice D 4169 for additional guidance.


1.1 This test method covers procedures for the drop testing of loaded boxes, cylindrical containers, and bags and sacks by the free-fall method.

1.2 For containers not exceeding 110 lb (50 kg), this test method fulfills the requirements of ISO Standards 2206:1987 and 2248:1985. These ISO standards may describe procedures that do not meet the requirements for this test method.

1.3 The values stated in inch-pound units are to be regarded as standard. The values given in parentheses are mathematical conversions to SI units that are provided for information only and are not considered standard.
