ASTM F2096 Bubble Leak Testing for Medical Device Packaging
ASTM F2096 is the standard method for detecting gross leaks in sterile medical device packaging using pressurization and bubble emission. The test identifies holes, channels, and seal failures by submerging the package in water under controlled inflation. It is widely used to verify sterile barrier and whole package integrity and for ISO 11607 compliance.
ASTM F2096 Video Overview
What ASTM F2096 Evaluates
Bubble leak testing identifies gross leaks that compromise the sterile barrier. These include:
- Seal channels
- Large punctures
- Delamination or weak seals
- Material voids
- Packing failures caused by shipping, sealing, or handling
Q: What size defect can ASTM F2096 detect?
A: ASTM F2096 typically detects defects greater than or equal to 250 microns, depending on package geometry and inflation pressure.
How the ASTM F2096 Bubble Leak Test Works
ASTM F2096 follows a simple, repeatable process:

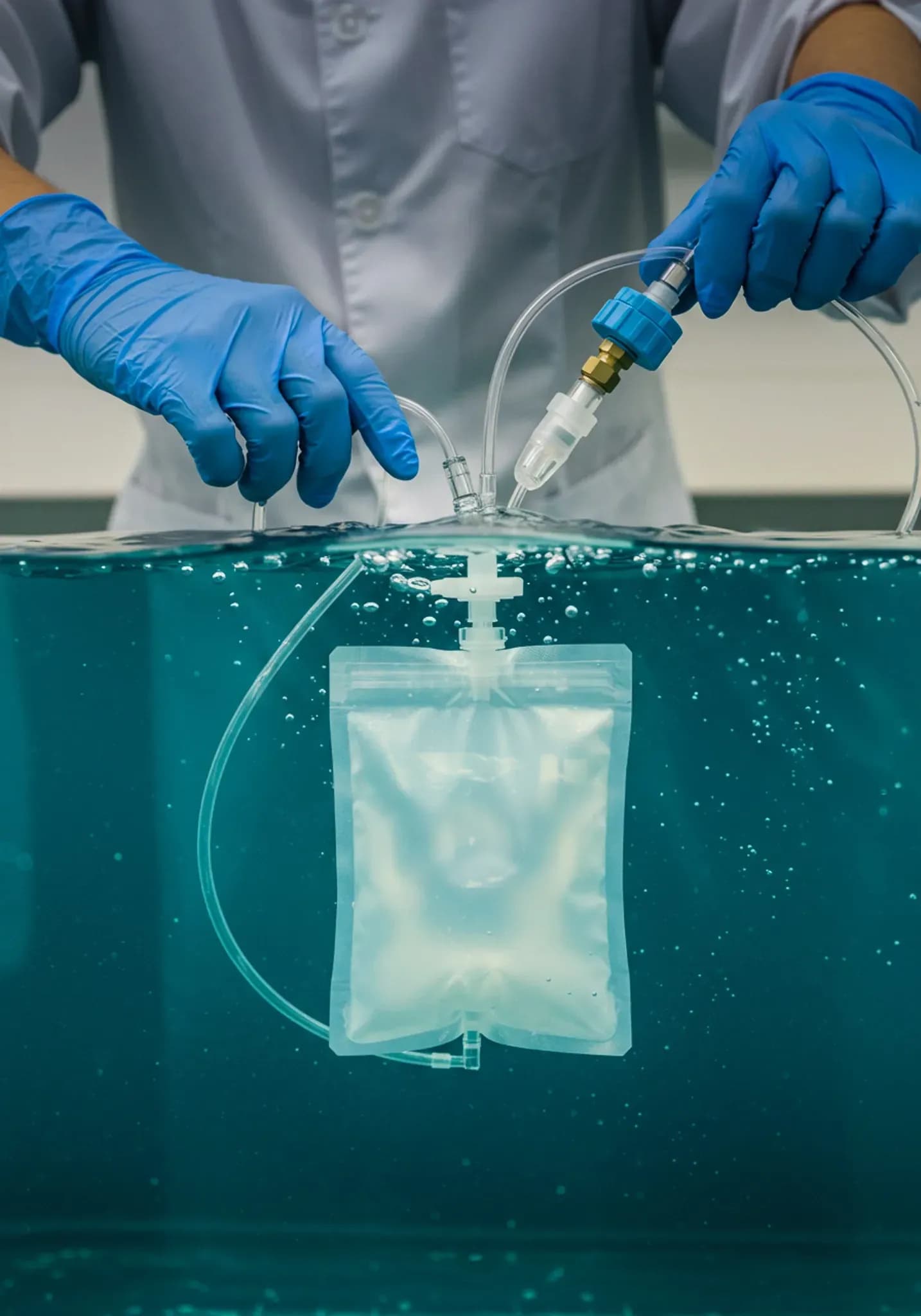

- The package is placed inside a transparent water tank.
- Controlled pressure inflates the package.
- The operator observes the package for escaping bubbles.
- If bubbles appear, a gross leak is present.
- Results are recorded as pass/fail for sterile barrier integrity.
This method provides a rapid, high-confidence way to detect contamination risks.
Q: Why use water immersion instead of dye or vacuum decay?
A: ASTM F2096 allows visual confirmation of leaks on the whole package and is ideal for porous packages (e.g., Tyvek pouches).
“ASTM F2096 remains one of the most reliable ways to reveal gross leaks that other methods can miss. If a constant stream of bubbles escape, you know immediately that the sterile barrier has been compromised.”
Sensitivity and Test Parameters
Test sensitivity is influenced by:
- Inflation pressure
- Package size and shape
- Material type (porous vs non-porous)
- Seal strength
- Operator visibility
ASTM F2096 defines acceptable inflation pressure ranges and observation criteria to ensure consistent detection.
Q: Does ASTM F2096 work on non-porous packaging?
A: Yes, but sensitivity and bubble detection behavior differ from porous materials.
Common Packaging Types Tested with ASTM F2096
This method is used for:
- Tyvek pouches
- Medical trays and lids
- Flexible sterile barrier systems
- Rigid or semi-rigid blisters
- Form-fill-seal pouches
- Combination product packaging
Q: Is ASTM F2096 required for medical devices?
A: ISO 11607 requires sterile barrier integrity testing; ASTM F2096 is one of the most widely accepted methods.
ASTM F2096 vs Other Integrity Test Methods
| Method | Detects | Best For |
|---|---|---|
| ASTM F2096 (Bubble Leak) | Gross leaks | Porous packaging, fast screening |
| ASTM F1929 (Dye Penetration) | Channel leaks | Visual confirmation of seal channels |
| ASTM F2096 Vacuum Decay | Small leaks | Non-destructive, instrumented testing |
| ASTM F88 (Seal Strength) | Mechanical seal performance | Evaluating seal durability |
Q: Can ASTM F2096 replace dye penetration?
A: No. F2096 detects gross leaks; dye penetration is used for finer channel leaks (< 50 microns).
ASTM F2096 FAQs
What is the purpose of ASTM F2096?
To identify gross leaks in sterile medical device packaging through bubble emission under controlled inflation.
How is a leak detected?
By observing bubbles escaping from a submerged, pressurized package.
What defect size can it detect?
Typically 250 microns or larger depending on packaging and pressure.
Is ASTM F2096 destructive?
Yes, it requires the operator to create holes in the packaging for a known defect and an air source entry.
Does this test support ISO 11607 validation?
Yes, it is widely accepted as a gross leak integrity method for sterile barrier systems.
